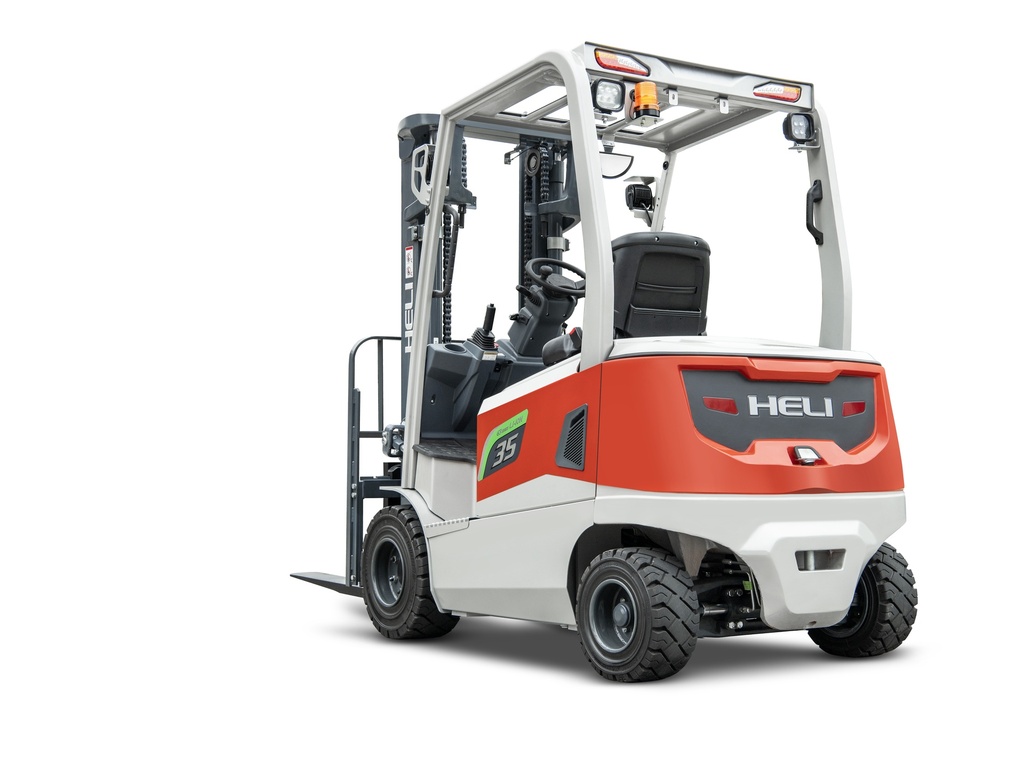

G3 2.5ton-3.5ton Lithium-ion Battery Counterbalanced Forklift
Quick Details
|
Feature: Forklift
|
Condition: New
|
Application: Construction
|
|
Brand Name: Heli
|
Model Number: CPD25
|
Certification: ISO,CE
|
|
Power type: Lithium-ion Battery
|
Lift height: 3m
|
Dimension: 2425*1195*3000mm
|
|
Rated capacity: 2.5t-3.5t
|
Lift speed (with load): 260mm/s
|
Place of Origin: Anhui, China (Mainland)
|
|
Warranty: 1 year
|
Transmission type: Hydraulic
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
10 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly |
Technical Parameters
| Model |
CPD25 |
CPD30 |
CPD35 |
| Configuration number |
GE2DLI |
GE2DLI |
GE2DLI |
| Rated capacity (Q, lbs) |
5000 |
6000 |
7000 |
| Load center distance (c, in) |
24 |
24 |
24 |
| Power mode |
Lithium battery |
Lithium battery |
Lithium battery |
| Driving mode |
Seated |
Seated |
Seated |
| Load distance, center of drive axle to fork (x, in) |
18.7 |
19.1 |
19.3 |
| Wheelbase (y, in) |
63.6 |
63.6 |
63.6 |
| Weight |
|
|
|
| Total weight (with/without battery, lbs) |
9612/8984 |
10814/9976 |
11684/10847 |
| Axle load (laden, front/rear, lbs) |
13362/1761 |
15393/2033 |
17337/2064 |
| Axle load (unladen, front/rear, lbs) |
4440/5172 |
4716/6098 |
4874/6810 |
| Tyres |
|
|
|
| Tyre type |
SE |
SE |
SE |
| Tyre size, front |
23x9 - 10 |
23x10 - 12 |
23x10 - 12 |
| Tyre size, rear |
18x7 - 8 |
200/50 - 10 |
200/50 - 10 |
| Wheels, number front/rear (x = driven wheels) |
2x/2 |
2x/2 |
2x/2 |
| Tread, front (b10, in) |
39 |
38.4 |
38.4 |
| Tread, rear (b11, in) |
39.4 |
39 |
39 |
| Dimensions |
|
|
|
| Mast tilt angle (forward/backward, α/β, deg) |
6/8 |
6/8 |
6/8 |
| Height (mast lowered, h1, in) |
84.8 |
84.8 |
84.8 |
| Free lifting height (h2, in) |
5.5 |
5.7 |
5.9 |
| Lifting height (standard, h3, in) |
118 |
118 |
118 |
| Max. height, extended (h4, in) |
158.7 |
166 |
166 |
| Height of overhead guard (h6, in) |
89 |
89 |
89 |
| Height of seat (h7, in) |
49.6 |
49.6 |
49.6 |
| Towing coupling height (h10, in) |
15.6 |
15.6 |
15.6 |
|
